springcloud · 2021年3月25日 0

springcloud初体验环境搭建

  • 之前一直使用的是基于dubbo-zookeeper的微服务架构,今天开始学习基于springcloud的微服务架构,首先是springcloud简介
  • springcloud官网 https://spring.io/projects/spring-cloud/
  • dubbo和springcloud有很多共同点也有很多不同之处,dubbo在进行服务调用时是基于RPC(远程过程调用Remote Procedure Call),默认的通讯协议是dubbo,底层则是使用netty进行请求,springcloud是基于REST API,在服务的调用上更为方便,容错机制也提供有像Hystrix熔断器等等
  • 初见
    springcloud相比于dubbo在框架的搭建要简单许多,idea编辑器也对springcloud有完善的初始化模块,对于一个初次体验的人简直不要太友好
    在这里插入图片描述
    一些常用的组件都会在Spring Initializr中看到,搭建起来也是比较方便
  • 框架搭建过程
    服务发现(eureka),服务的注册中心,作用:服务治理,服务发现;
    在这里插入图片描述
    新建一个module,选择 spring Initializr
    在这里插入图片描述
    模块名称,包路径名称,java版本选择;
    在这里插入图片描述
    选择springcloud discovery,选择eureka server,一路next
package com.sunyw.xyz.eureka;

import org.apache.juli.logging.Log;
import org.apache.juli.logging.LogFactory;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@SpringBootApplication
@EnableEurekaServer
public class EurekaApplication {
    private static Log log = LogFactory.getLog(EurekaApplication.class);

    public static void main(String[] args) {
        log.info("注册中心开始启动....loading");
        SpringApplication.run(EurekaApplication.class, args);
    }

}

服务启动类增加@EnableEurekaServer,标识当前为服务注册,配置文件

server:
  port: 9000
spring:
  application:
    name: eureka
eureka:
  client:
    register-with-eureka: false
    fetch-registry: false
    service-url:
      default-zone: http://${eureka.instance.hostname}:${server.port}/eureka/
  instance:
    hostname: localhost

register-with-eureka设置不注册本身,fetch-registry是否获取其他服务地址,配置完成后启动,访问http://127.0.0.1/port
在这里插入图片描述
eureka的管理面板

  • 服务熔断-hystrix
    创建服务模板与之前的区别在于选择初始化时选择springcloud circuit breaker 熔断器,hystrix
    在这里插入图片描述
    选择hystrix,pom文件中别忘记加上eureka的依赖
 <dependency>
     <groupId>org.springframework.cloud</groupId>
     <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>
  • 配置文件
server:
  port: 9003
spring:
  application:
    name: hystrix
eureka:
  client:
    service-url:
      defaultZone: http://127.0.0.1:9000/eureka/,http://127.0.0.1:8999/eurekaby/
  instance:
    ip-address: true
  • 启动类中加上@EnableHystrixDashboard
package com.sunyw.xyz.hystrix;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;

@SpringBootApplication
@EnableHystrixDashboard
@EnableEurekaClient
public class HystrixApplication {

    public static void main(String[] args) {
        SpringApplication.run(HystrixApplication.class, args);
    }

}
  • 下面创建一个服务提供者和服务调用者

    package com.sunyw.xyz.product;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

@SpringBootApplication
@EnableEurekaClient
@EnableFeignClients
public class ProductApplication {

public static void main(String[] args) {
    SpringApplication.run(ProductApplication.class, args);
}

}

@EnableEurekaClient 开始注册中心连接,配置文件@EnableFeignClients,开启fegin调用

server:
port: 9001
spring:
application:
name: product
eureka:
client:
service-url:
defaultZone: http://127.0.0.1:9000/eureka/,http://127.0.0.1:8999/eurekaby/
instance:
ip-address: true
feign:
hystrix:
enabled: true

- 多注册中心地址可用,隔开,然后创建一个web接口

package com.sunyw.xyz.product.controller;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/api")
public class ProductController {

@RequestMapping(value = "/word")
public String getWord(@RequestParam String name) {
    return "Word";
}

}

- 服务消费者,配置与上方一直,修改端口号和服务名称

package com.sunyw.xyz.customer;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

@SpringBootApplication
@EnableEurekaClient
@EnableFeignClients
public class CustomerApplication {

public static void main(String[] args) {
    SpringApplication.run(CustomerApplication.class, args);
}

}

- 消费者配置文件

server:
port: 9004
spring:
application:
name: customer
eureka:
client:
service-url:
defaultZone: http://127.0.0.1:9000/eureka/,http://127.0.0.1:8999/eurekaby/
instance:
ip-address: true
feign:
hystrix:
enabled: true

- fegin的服务调用是基于服务名称加接口地址进行调用的

package com.sunyw.xyz.customer.controller;

import com.sunyw.xyz.customer.service.CustomerInterface;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/api")
public class CustomerController {
@Autowired
private CustomerInterface customerInterface;

@RequestMapping("/getWord")
public String getWord(@RequestParam String name) {
    return customerInterface.getName(name);
}

}

package com.sunyw.xyz.customer.service;

import com.sunyw.xyz.customer.service.impl.CustomerInterfaceImpl;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;

@FeignClient(value = "product", fallback = CustomerInterfaceImpl.class)
public interface CustomerInterface {

@RequestMapping("/api/word")
String getName(@RequestParam(value = "name") String name);

}

package com.sunyw.xyz.customer.service.impl;

import com.sunyw.xyz.customer.service.CustomerInterface;
import org.springframework.stereotype.Component;
/**

  • @Description: 服务熔断
  • @Author: sunyw
  • @CreateDate: 2020/8/24 21:55
  • @UpdateUser: sunyw
  • @UpdateDate: 2020/8/24 21:55
  • @UpdateRemark: 修改内容
  • @Version: 1.0
    */
    @Component
    public class CustomerInterfaceImpl implements CustomerInterface {
    @Override
    public String getName(String name) {
    return "Fegin调用失败";
    }
    }

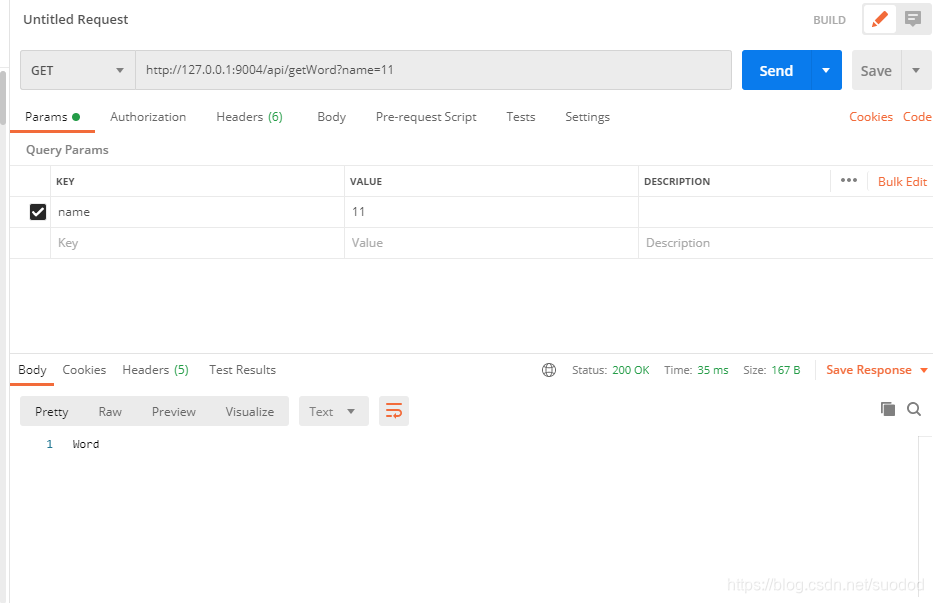

- 测试
![在这里插入图片描述](https://img-blog.csdnimg.cn/20200824215723385.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3N1b2RvZA==,size_16,color_FFFFFF,t_70#pic_center)

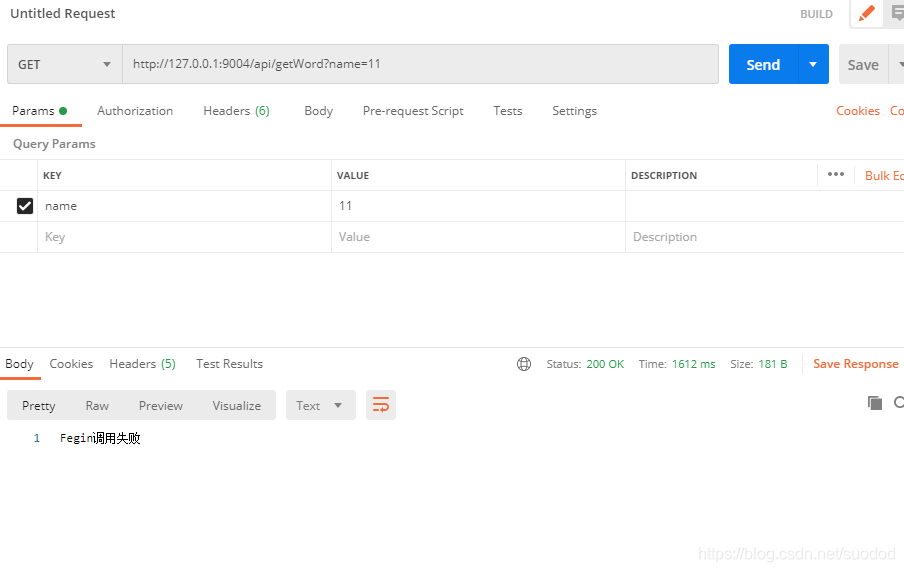

- 测试熔断异常
![在这里插入图片描述](https://img-blog.csdnimg.cn/20200824215752940.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3N1b2RvZA==,size_16,color_FFFFFF,t_70#pic_center)
- 暂时这么多,代码地址:https://gitee.com/sunyaowei/springcloud-ex.git
